Chapter 1: Challenge Problems (1.94 - 1.98)

1.94 The length of a rectangle is given as $L \pm l$, and its width as $W \pm w$. a) Show that the uncertainty in its area A is $a = Lw + lW$. Assume that the uncertanties $l$ and $w$ are very small, so that the product $lw$ is very small and you can ignore it. b) Show that the fractional uncertainty in the area is equal to the sum of the fractional uncertainty in length and the fractional uncertainty in width. c) A rectangular solid has dimensions $L \pm l$, $W \pm w$, and $H \pm h$. Find the fractional uncertainty in the volume, and show that it equals the sum of the fractional uncertainties in the length, width, and height.

1.95 Completed Pass. At Enormous State University (ESU), the football team records its plays using vector displacements, with the origin taken to be the position of the ball before the play starts. In a certain pass play, the receiver starts at $+1.0\hat{i} - 5.0\hat{j}$, where the units are yards, $\hat{i}$ is to the right, and $\hat{j}$ is downfield. Subsequent displacements of the receiver are $+9.0\hat{i}$ (in motion before the snap), $+11.0\hat{j}$ (breaks downfield), $-6.0\hat{i} + 4.0\hat{j}$(zigs), and $+12.0\hat{i} + 18.0\hat{j}$ (zags). Meanwhile, the quarterback has dropped straight back to a position $-7.0\hat{j}$. How far and in which direction must the quarterback throw the ball? (Like the coach, you will be well advised to diagram the situation before solving it numerically.)

1.96 Navigating in the Solar System. The Mars Polar Lander spacecraft was launched on January 3, 1999. On December 3, 1999, the day that the Mars Polar Lander touched down on the Martian surface, the positions of the earth and Mars were given by these coordinates.

	x	y	z
Earth	0.3182 AU	0.9329 AU	0.0000 AU
Mars	1.3087 AU	-0.4423 AU	-0.0414 AU

In these coordinates, the sun is at the origin and the plane of the earth's orbit is the xy-plane. The earth passes through the +x-axis once a year on the autumnal equinox, the first day of autumn in the northern hemisphere (on or about September 22). One AU, or astronomical unit, is equal to $1.496 \times 10^8 km$, the average distance from the earth to the sun. a) In a diagram, show the positions of the sun, the earth, and Mars on December 3rd, 1999. b) Find the following distances in AU on December 3, 1999: i) from the sun to the earth; ii) from the sun to Mars; iii) from the earth to Mars. c) As seen from the earth, what was the angle between e direction to the sun and the direction to Mars on December 3, 1999? d) Explain whether Mars was visible from your location at midnight on December 3, 1999. (When it is midnight at your location, the sun is on the opposite side of the earth from you.)


1.97 Navigating in the Big Dipper.  All the stars of the Big Dipper (part of the constellation Ursa Major) may appear to be the same distance from the earth, but in fact they are very far from each other. Figure 1.36 shows the distances from the earth to each of these stars. The distances are given in light years (ly), the distance that light travels in 1 year. One light year equals $9.461 \times 10^15 m$. a) Alkaid and Merak are $25.6^\circ$ apart in the earth's sky. In a diagram, show the relative positions of Alkaid, Merak, and our sun. Find the distance in light years from Alkaid to Merak. b) To an inhabitant of a planet orbiting Merak, how many degrees apart in the sky would Alkaid and our sun be?

1.98 The vector $\vec{r} = x\hat{i} + y\hat{j} + z\hat{k}$, called the position vector, which points from the origin (0, 0, 0) to an arbitrary point in space with coordinates (x, y, z). Use what you know about vectors to prove the following: All points (x, y, z) that satisfy the equation $Ax + By + Cz = 0$, where A, B, and C are constants, lie in a plane tat passes through the origin and that is perpendicular to the vector $A\hat{i} + B\hat{j} + C\hat{k}$. Sketch this vector and the plane.

Chapter 1: Problems (1.87 - 1.93)

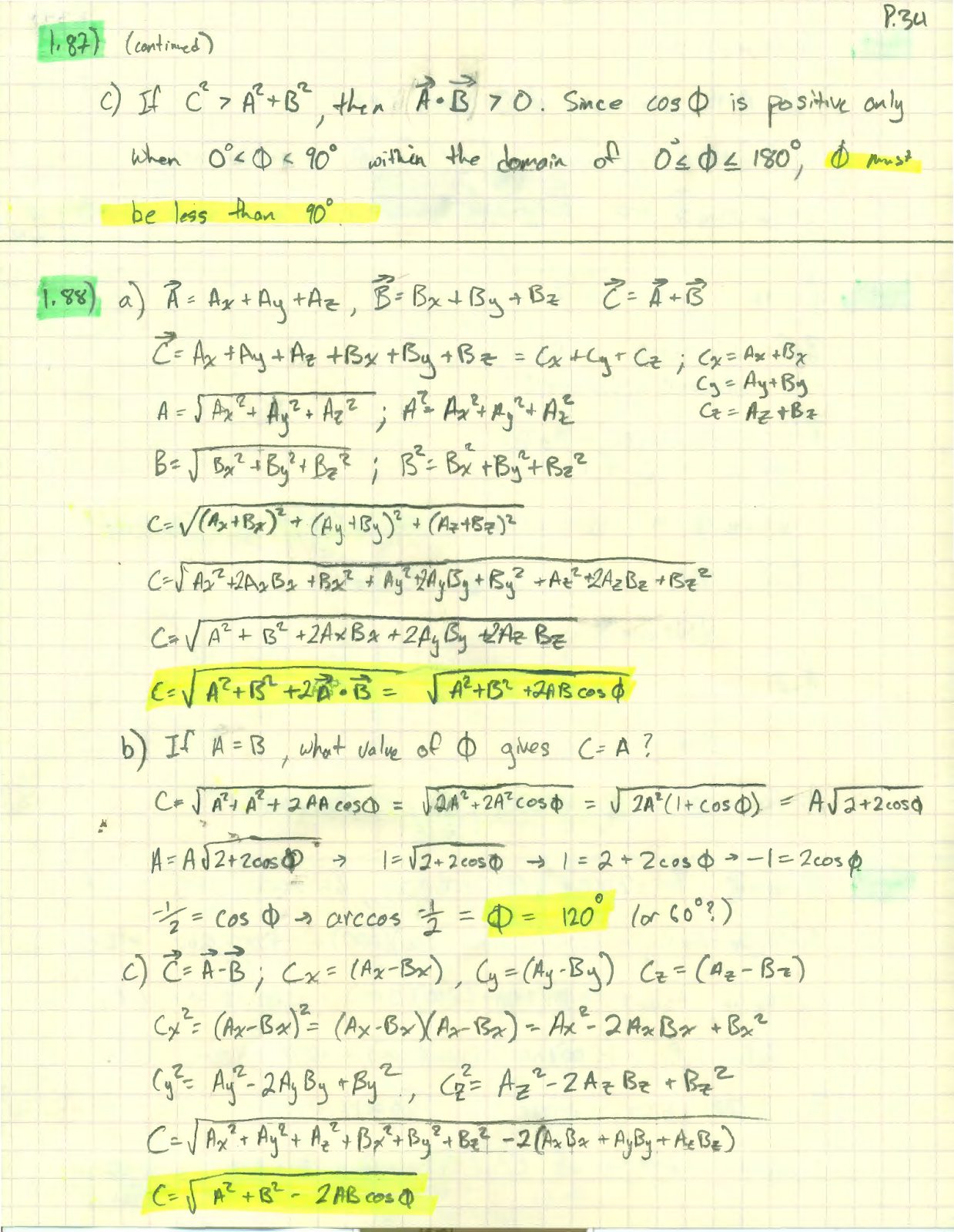

1.87 The two vectors $\vec{A}$ and $\vec{B}$ are drawn from a common point, $\vec{C} = \vec{A} + \vec{B}$. a) Show that if $C^2 = A^2 + B^2$, the angle between the vectors $\vec{A}$ and $\vec{B}$ is $90^\circ$. b) Show that if $C^2 < A^2 + B^2$, the angle between the vectors $\vec{A}$ and $\vec{B}$ is greater than $90^\circ$. c) Show that if $C^2 > A^2 + B^2$, the angle between the vectors $\vec{A}$ and $\vec{B}$ is between $0^\circ$ and $90^\circ$.

1.88 When two vectors $\vec{A}$ and $\vec{B}$ are drawn from a common point, the angle between them is $\phi$. a) Using vector techniques, show that the magnitude of their vector sum is given by

$\sqrt{A^2 + B^2 +2AB\cos{\phi}}$

b) if $\vec{A}$ and $\vec{B}$ have the same magnitude, for which value of $\phi$ will their vector sum have the same magnitude of $\vec{A}$ or $\vec{B}$? c) Derive a result analogous to that in part (a) for the magnitude of the vector difference $\vec{A} - \vec{B}$. d) If $\vec{A}$ and $\vec{B}$ have the same magnitude, for what value of $\phi$ will $\vec{A} - \vec{B}$ have this same magnitude?

1.89 A cube is placed so that one corner is at the origin and three edges are along the x-, y-, and z-axes of a coordinate system (Fig. 1.35). Use vectors to compute a) the angle betwee the edge along the z-axis (line ab) and the diagonal from the origin to the opposite corner (line ad); b) the angle between line ac (the diagonal of a face) and line ad.

1.90 Obtain a unit vector perpendicular to the two vectors given in Problem 1.85.

1.91 You are given vectors $\vec{A} = 5.0\hat{i} - 6.5\hat{j}$ and $\vec{B} = -3.5\hat{i} + 7.0{j}$. A third vector $\vec{C}$ lies in the xy-plane. Vector $\vec{C}$. Vector $\vec{C}$ is perpendicular to vector $\vec{A}$, and the scalar product of $\vec{C}$ with $\vec{B}$ is 15.0 =. From this information, find the components of vector $\vec{C}$.

1.92 Two vectors $\vec{A}$ and $\vec{B}$have magnitude A = 3.00 and B = 3.00. Their vector product is $\vec{A} \times \vec{B} = -5.00\hat{k} + 2.00\hat{i}$. What is the angle between $\vec{A}$ and $\vec{B}$?

1.93 Later in our study of physics we will encounter quantities represented by $(\vec{A} \times \vec{B}) \cdot \vec{C}$. a) Prove that for any three vectors $\vec{A}$, $\vec{B}$, and $\vec{C}$, $\vec{A} \cdot (\vec{B}) \times \vec{C}) = (\vec{A} \times \vec{B}) \cdot \vec{C}$. b) Calculate $(\vec{A} \times \vec{B}) \cdot \vec{C}$ for the three vectors $\vec{A}$ with magnitude A = 5.00 and angle $\theta_A = 26.0^\circ$ measured in the sense from the +x-axis toward the +y-axis, $\vec{B}$ with B = 4.00 and $\theta_B = 63.0^\circ$, and $\vec{C}$ with magnitude 6.00 and in the +z-direction. Vectors $\vec{A}$ and $\vec{B}$ are in the xy-plane.

Chapter 1: Problems (1.82 - 1.86)

1.82 For the two vectors $\vec{A}$ and $\vec{B}$ in Fig. 1.30, a) find the scalar product $\vec{A} \cdot \vec{B}$; b) find the magnitude and direction of the vector product $\vec{A} \times \vec{B}$.

1.83 Figure 1.8c shows a parallelogram based on the two vectors $\vec{A}$ and $\vec{B}$. a) Show that the magnitude of the cross product of these two vectors is equal to the area of the parallelogram. (Hint: area = base $\times$ height.) b) What is the angle between the cross product and the plane of the parallelogram?

1.84 The vector $\vec{A}$ is 3.50 cm long and is directed into this page. Vector $\vec{B}$ points from the lower-right corner of this page to the upper-left corner of this page. Define an appropriate right-handed coordinate system and find the three components of the vector product $\vec{A} \times \vec{B}$, measured in cm$^2$. In a diagram, show your coordinate system and the vectors $\vec{A}$, $\vec{B}$, and $\vec{A} \times \vec{B}$.

1.85 Given two vectors $\vec{A} = -2.00\hat{i} + 3.00\hat{j} + 4.00\hat{k}$ and $\vec{B} = 3.00\hat{i} + 1.00\hat{j} - 3.00\hat{k}$, do the following. a) Find the magnitude of each vector. b) Write an expression for the vector difference $\vec{A} - \vec{B}$. Is this the same as the magnitude of $\vec{B} - \vec{A}$? Explain.

1.86 Bond Angle in Methane. In the methane molecule, CH$_4$, each hydrogen atom is at a corner of a regular tetrahedron with the carbon atom at the center. In coordinates where one of the C – H bonds is in the direction of $\hat{i} + \hat{j} + \hat{k}$, an adjacent C – H bond is in the direction of $\hat{i} - \hat{j} - \hat{k}$ direction. Calculate the angle between these two bonds.

Chapter 1: Problems (1.77 - 1.81)

1.77 Bones and Muscles. A patient in therapy has a forearm that weighs 20.5 N and that lifts a 112.0-N weight. These two forces have direction vertically downward. The only other significant forces on his forearm come from the biceps muscle (which acts perpendicularly to the forearm) and the force at the elbow. If the biceps produces a pull of 232 N when the forearm is raised $43^\circ$ above the horizontal, find the magnitude and direction of the force that the elbow exerts on the forearm. (The sum of the elbow force and the biceps force must balance the weight of the arm and the weight it is carrying, so their vector sum must be 132.5 N, upward)

1.78 You are hungry and decide to go to your favorite neighborhood fast-food restaurant. You leave your apartment and take the elevator 10 flights down (each flight is 3.0 m) and then go 15 m south to the apartment exit. You then proceed 0.2 km east, turn north, and go 0.1 km to the entrance of the restaurant. a) Determine the displacement from your apartment to the restaurant. Use unit-vector notation for your answer, being sure to make clear choice of coordinates. b) How far did you travel along the path you took from your apartment to the restaurant and what is the magnitude of the displacement you calculated in part (a)?

1.79 You are canoeing on a lake. Starting at your camp on the shore, you travel 240 m in the direction $32^\circ$ south of east to reach a store to purchase supplies. You know the distance because you have located both your camp and the store on a map of the lake. On the return trip you travel distance B in the direction $48^\circ$ north of west, distance C in the direction $62^\circ$ south of west, and then you are back at your camp. You measure the directions of travel with your compass, but you don't know the distances. Since you are curious to know the total distance you rowed, use vector methods to calculate the distances B and C.

1.80 You are camping with two friends, Joe and Karl. Since all three of you like your privacy, you don't pitch your tents close together. Joe's tent is 21.0 m from yours, in the direction $23.0^\circ$ south of east. Karl's tent is 32.0 m from yours, in the direction $37.0^\circ$ north of east. What is the distance between Karl's tent and Joe's tent?

1.81 Vectors $\vec{A}$ and $\vec{B}$ are drawn from a common point. Vector $\vec{A}$ has magnitude A and angle $\theta_A$ measured in the sense from the +x-axis to the +y-axis. The corresponding quantities for vector $\vec{B}$ are B and $\theta_B$. Then $\vec{A} = A\cos\theta_A\hat{i} + A\sin\theta_A\hat{j}$, $\vec{B} = B\cos\theta_B\hat{i} + B\sin\theta_B\hat{j}$, and $\phi = |\theta_B - \theta_A|$ is the angle between $\vec{A}$ and $\vec{B}$. a) Derive Eq. (1.18) from Eq. (1.21). b) Derive Eq. (1.22) from Eq. (1.27).

Chapter 1: Problems (1.72 - 1.76)

1.72 On a training flight, a student pilot flies from Lincoln, Nebraska to Clarinda, Iowa, and then to St. Joseph, Missouri, and then to Manhattan, Kansas (Fig. 1.33). The directions are shown relative to north: $0^\circ$ is north, $90^\circ$ is east, $180^\circ$ is south, and $270^\circ$ is west. Use the method of components to find a) the distance she has to fly from Manhattan to get back to Lincoln; b) the direction (relative to north) she must fly to get there. Illustrate your solution with a vector diagram.

1.73 A graphic artist is creating a new logo for her company's Web site. In the graphics program she is using, each pixel in an image file has coordinates (x, y), where the origin (0, 0) is at the upper-left corner of the image, the +x-axis points to the right, and the +y-axis points down. Distances are measured in pixels. a) The artist draws a line from the pixel location (10, 20) to the location (210, 200). She wishes to draw a second line that starts at (10, 20), is 250 pixels long, and is at an angle of $30^\circ$ measured clockwise from the first line. At which pixel location should this second line end? Give your answer to the nearest pixel. b) The artist now draws an arrow that connects the lower right end of the first line to the lower right end of the second line. Find the length and direction of this arrow. Draw a diagram showing all three lines.

1.74 Getting Back. An explorer in the dense jungles of equatorial Africa leaves his hut. He takes 40 steps northeast, then 80 steps $60^\circ$ north of west, then 50 steps due south. Assume his steps all have equal length. a) Sketch, roughly to scale, the three vectors and their resultant. b) Save him from becoming hopelessly lost in the jungle by giving him the displacement, calculated using the method of components, that will return him to his hut.

1.75 A ship leaves the island of Guam and sails 285 km at $40.0^\circ$ north of west. In which direction must it now head and how far must it sail so that its resultant displacement will be 115 km directly east of Guam?

1.76 A boulder of weight w rests on a hillside that rises at a constant angle $\alpha$ above the horizontal, as shown in Fig. 1.34. Its weight is a force on the boulder that has direction vertically downward. a) In terms of $\alpha$ and w, what is the component of the weight of the boulder in the direction parallel to the surface of the hill? b) What is the component of the weight in the direction perpendicular to the surface of the hill? c) An air conditioner unit is fastened to a roof that slopes upward at an angle of $35.0^\circ$. In order that the unit not slide down the rood, the component of the unit's weight parallel to the roof cannot exceed 550 N. What is the maximum allowed weight of
the unit?

Chapter 1: Problems (1.67 - 1.71)

1.67 You are to program a robotic arm on an assembly line to move in the xy-plane. Its first displacement is $\vec{A}$; its second displacement is $\vec{B}$, of magnitude 6.40 cm and direction $63^\circ$ measured in the sense from the +x-axis toward the -y-axis. The resultant $\vec{C} = \vec{A} + \vec{B}$ of the two displacements should also have a magnitude of 6.40 cm but a direction $22.0^\circ$ measured in the sense from the +x-axis toward the +y-axis. a) Draw the vector addition diagram for these vectors, roughly to scale. b) Find the components of $\vec{A}$. c) Find the magnitude of $\vec{A}$.

1.68 a) Find the magnitude and direction of the vector $\vec{R}$ that is the sum of the three vectors $\vec{A}, \vec{B},$ and $\vec{C}$ in Fig. 1.28. In a diagram, show how $\vec{R}$ is formed from the three vectors in Fig. 1.28. b) Find the magnitude and direction of the vector $\vec{S} = \vec{C} - \vec{A} - \vec{B}$. In a diagram, show how $\vec{S}$ is formed from the three vectors in Fig. 1.28.

1.69 As noted in Exercise 1.33, a spelunker is surveying a cace. She follows a passage 180 m straight west, then 210 m in a direction $45^\circ$ east of south, then 280 m at $36^\circ$ east of north. After a fourth unmeasured displacement, she finds herself back where she started. Use the method of components to determine the magnitude and direction of the fourth displacement. Draw the vector addition diagram and show that it is in qualitative agreement with your numerical solution.

1.70 A sailor in a small sailboat encounters shifting winds. She sails 2.00 km east, then 3.50 km southeast, and then an additional distance in an unknown direction. Her final position is 5.80 km directly east of the starting point (Fig. 1.32). Find the magnitude and direction of the third leg of the journey. Draw the vector addition diagram and show that it is in qualitative agreement with your numerical solution.

1.71 A cross-country skier skis 2.80 km in the direction $45.0^\circ$ west of south, then 7.40 km in the direction $22.0^\circ$ south of west. a) Show these displacements in a diagram. b) How far is the skier from the starting point?

Chapter 1: Problems (1.62 - 1.66)

1.62 Iron has a property such that a $1.00 m^3$ volume has a mass of $7.86 \times 10^3 kg$ (density equals $7.86 \times 10^3 kg/m^3$). You want to manufacture iron into cubes and spheres. Fina a) the length of the side of a cube of iron that has a mass of 200.0 g; b) the radius of a solid sphere of iron that has a mass of 200.0 g.

1.63 a) Estimate the number of dentists in your city. You will need to consider the number of people in your city, how often they need to go to the dentist, how oftern they actually go, how many hours a typical dental procedure (filling, root canal, and so on) takes, and how many hours a dentist works in a week. b) Using your local telephone directory, check to see whether your estimate was roughly correct.

1.64 Physicists, mathematicians, and others often deal with large numbers. The number $10^100$ has been given the whimsical name googol by mathematicians. Let us compare some large numbers in physics with the googol. (Note: This problem requires numerical values that you can find in the appendices of the book, with which you should become familiar.) a) Approximately how many atoms make up our planet? For simplicity, assume the average atomic mass of the atoms to be 14 g/mol. Avogadro's number gives the number of atoms in a mole. b) Approximately how many neutrons are in a neutron star? Neutron stars are composed almost entirely of neutrons and have approximately twice the mass of the sun. c) In the leading theory of the origin of the universe that we can now observe occupied, at a very early time, a sphere whose radius was approximately equal to the present distance of the earth to the sun. At that time the universe had a density (mass divided by volume) of $10^{15} g/cm^3$. Assuming that $\frac{1}{3}$ of the particles were protons, $\frac{1}{3}$ of the particles were neutrons, and the remaining $\frac{1}{3}$ were electrons, how many particles then made up the universe?

1.65 Three horizontal ropes pull on a large stone stuck in the grounding, producing the vector forces $\vec{A}$, $\vec{B}$, and $\vec{C}$ shown in Fig. 1.31. Find the magnitude and direction of a fourth force on the stone that will make the vector sum of the four forces zero.

1.66 Emergency Landing. A plane leaves the airport in Galisto and flies 170 km at $68^\circ$ east of north and then changes direction to fly 230 km at $48^\circ$ south of east, after which it makes and immediate emergency landing in a pasture. When the airport sends out a rescue crew, in which direction and how far should this crew fly to go directly to this plane?
